Solar-powered copper ionization · Two non-LED models

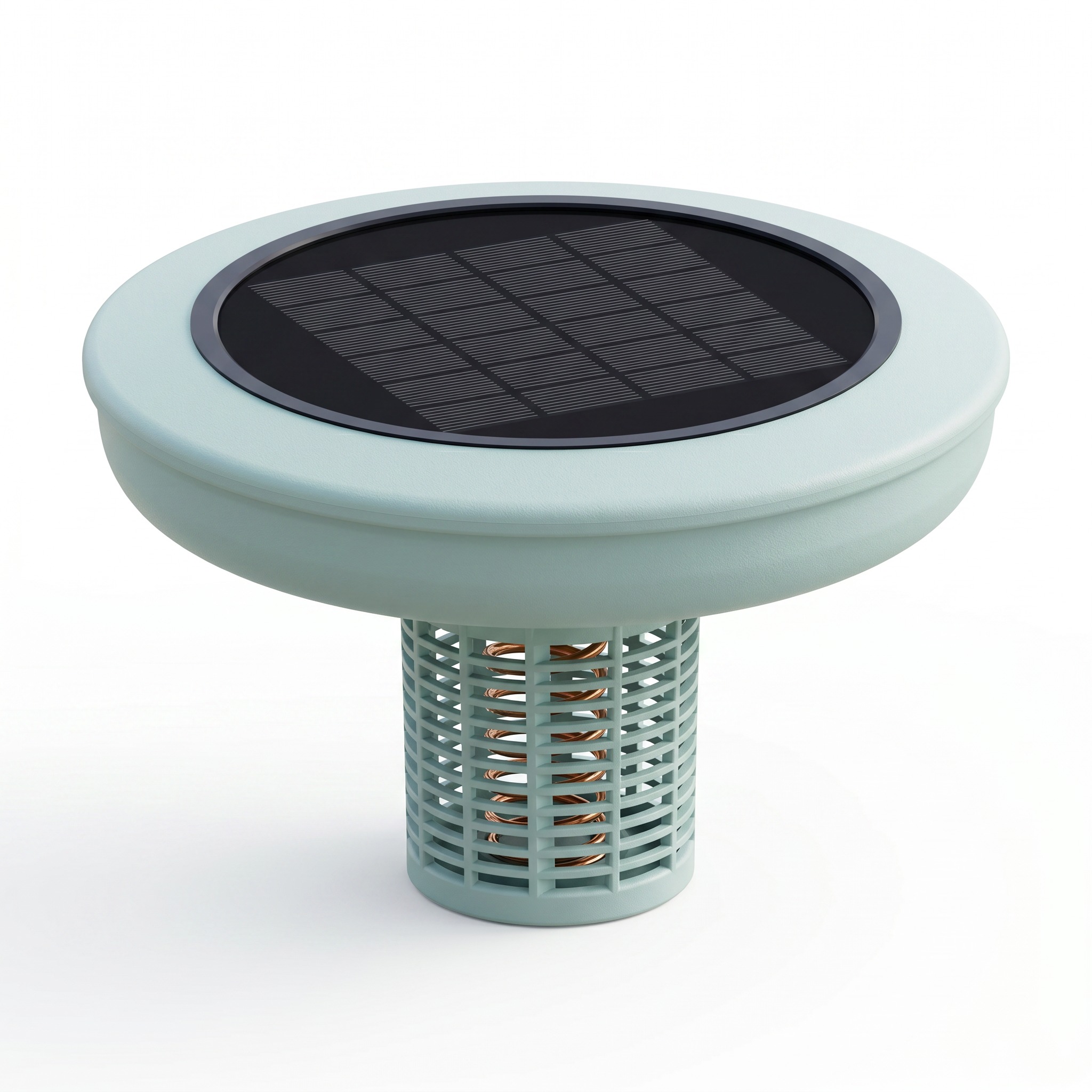

Solar Pool Copper Ionizer

Choose between the blow-molded BZ-CE632-BM and injection-molded BZ-CE632-PRO. Both are non-LED, battery-free reference configurations with model-specific construction and copper-rod details.

BZ-CE632-BM · Blow Molded VersionBZ-CE632-PRO · Injection Molded Version

Blow-Molded Solar Pool Ionizer — BZ-CE632-BM — BZ-CE632-BM · Blow Molded Version

Injection-Molded Solar Pool Ionizer — BZ-CE632-PRO — BZ-CE632-PRO · Injection Molded Version

Two controlled configurations

Reference specifications

BZ-CE632-BM · ION-IMG-BM-001

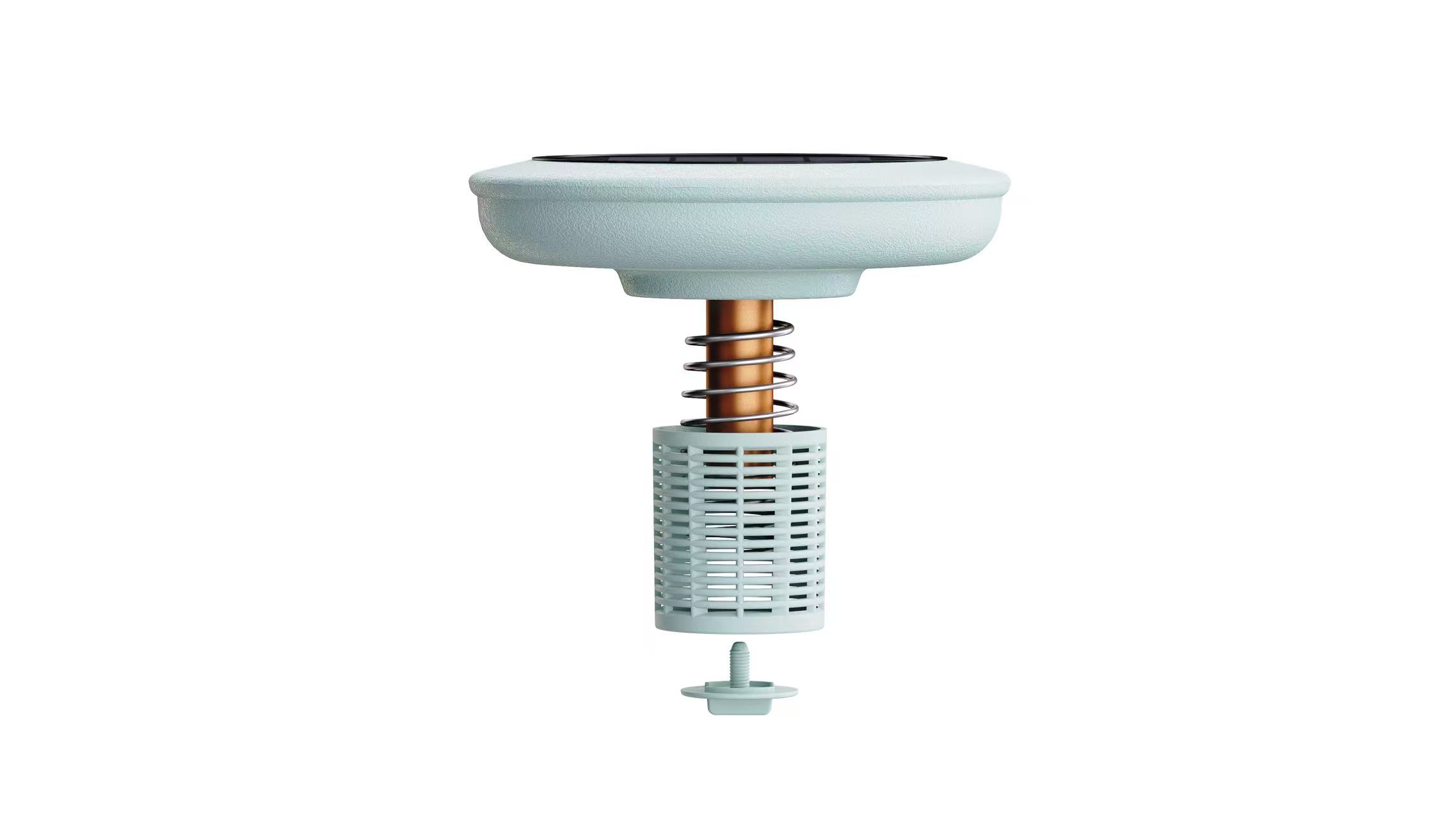

Blow-Molded Solar Pool Ionizer

Blow Molded Version

The BM configuration uses a blow-molded housing and is the only model in this Source Set with controlled small copper-rod customization.

Housing process	Blow molded
Solar panel	Monocrystalline · Ø150 mm
Solar operating point	6.0 V · 0.32 A · approximately 1.92 W
Reference copper rod	Ø20 × 80 mm
Reference copper-ion output rate	1100–1800 mg/day
Water-protection rating	IPX7
Customization	Custom example Ø12 × 80 mm; final specification confirmed in writing
Battery / LED	No battery · Non-LED

BZ-CE632-PRO · ION-IMG-PRO-001

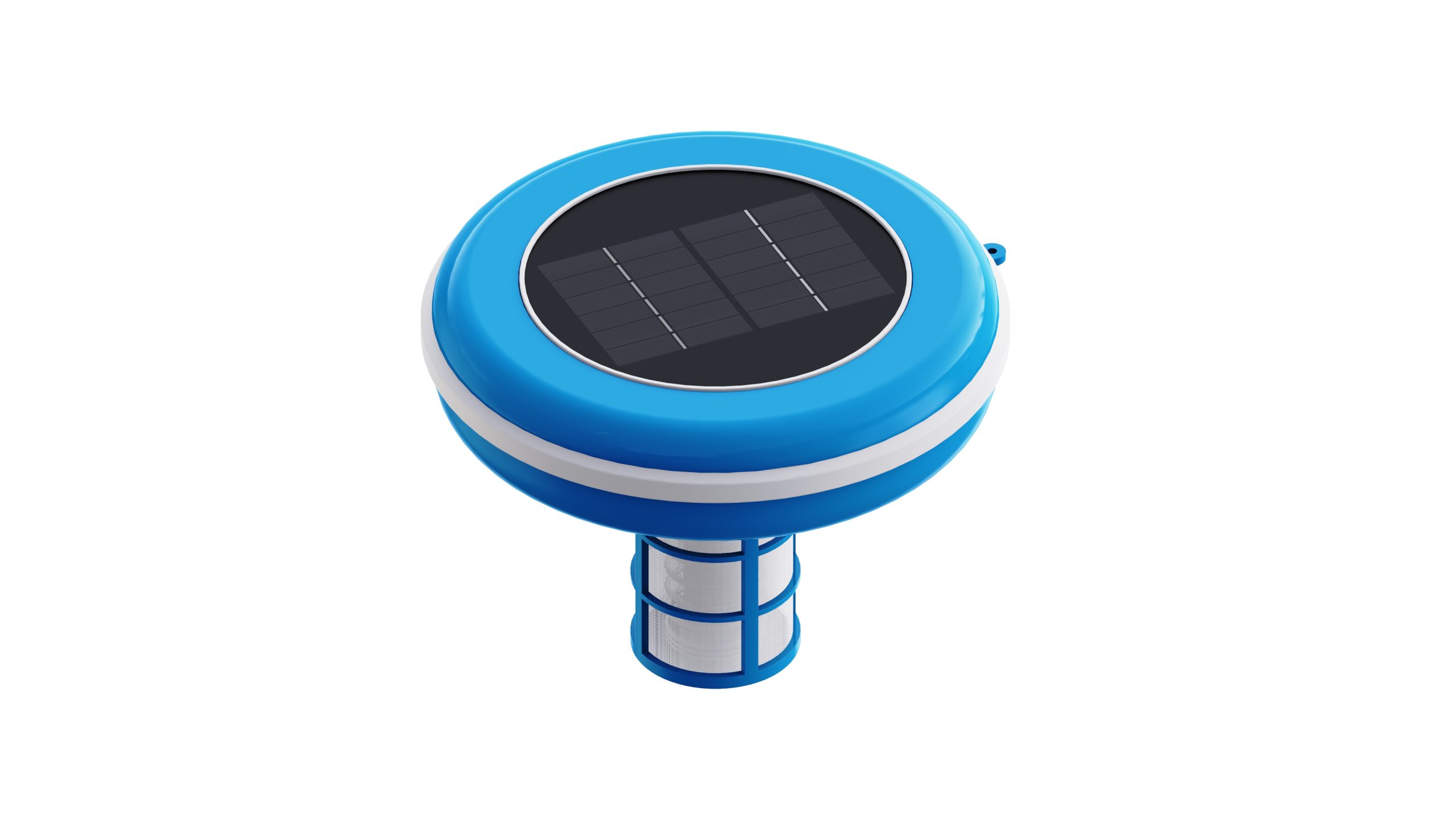

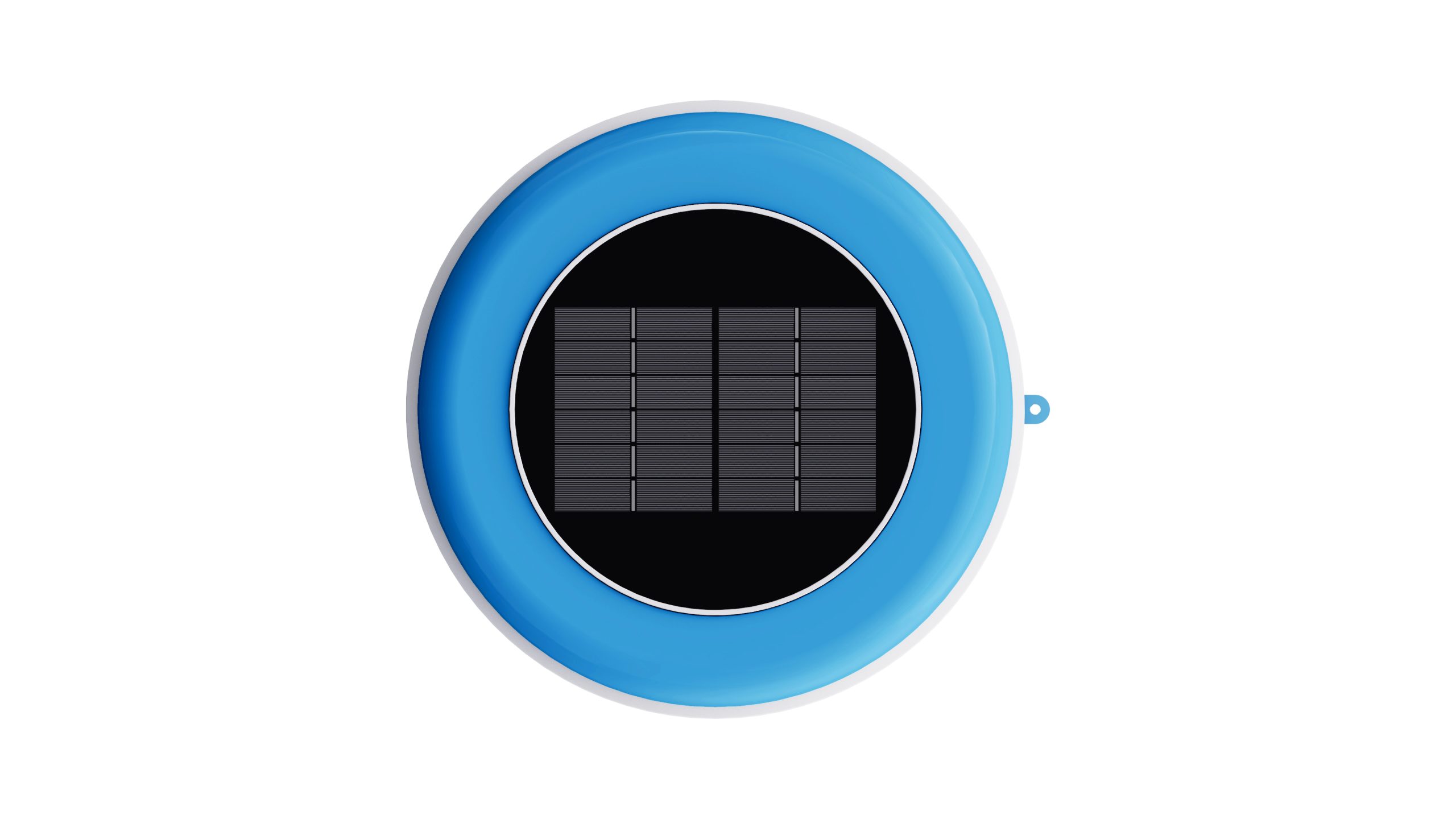

Injection-Molded Solar Pool Ionizer

Injection Molded Version

The PRO configuration uses an injection-molded housing. It remains a distinct model identity, not a generic upgrade label.

Housing process	Injection molded
Solar panel	Monocrystalline · Ø150 mm
Solar operating point	6.0 V · 0.32 A · approximately 1.92 W
Reference copper rod	Ø20 × 105 mm
Reference copper-ion output rate	1100–1800 mg/day
Water-protection rating	IPX7
Customization	No small copper-rod customization claim
Battery / LED	No battery · Non-LED

Maintenance and claim boundaries

Copper-electrode replacement is approximately every 4–6 months depending on usage conditions. This is not a fixed guarantee. Copper ionization should be presented as part of pool-water management, not as a chemical-free claim or complete replacement for the overall pool-care program.

Reference specifications

Customized BM copper-rod dimensions do not automatically inherit the reference output rate, replacement interval or performance values. Final customized specifications must be confirmed in writing.

Frequently asked questions

What is the difference between BM and PRO?

BM uses a blow-molded housing; PRO uses an injection-molded housing. They remain separate model identities.

Which model supports a smaller custom copper rod?

Only BZ-CE632-BM. A confirmed example is Ø12 × 80 mm, with final specifications confirmed in writing.

Do these two models include a battery or LEDs?

No. BZ-CE632-BM and BZ-CE632-PRO are non-LED versions with no battery.

How often is the copper electrode replaced?

Approximately every 4–6 months depending on usage conditions; this is not a fixed guarantee.

Does IPX7 mean unlimited immersion?

No. State the IPX7 rating without expanding it into unlimited-immersion or permanent-waterproofing claims.

Need the correct Ionizer configuration?

Request model-specific confirmation for sample evaluation or a customized BM copper-rod configuration.

Request controlled model review
